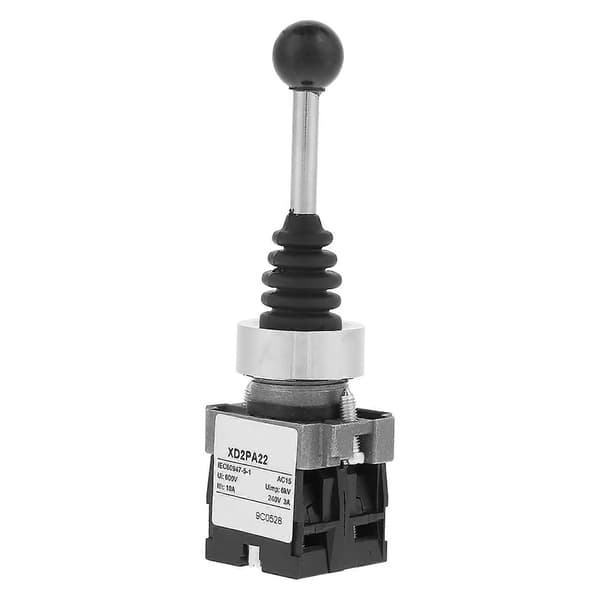

1st XD2PA22CR 2NO 2-Position Spring Return Momentary Joystick Switch-FX-

Features:\r\nThe joystick switch is a momentary switch that has 2 normally open contacts.\r\n\r\nThe lever returns to its original position when released.\r\n\r\nThe rubber sleeve on the lever is resistant to water, oil, and dust.\r\n\r\nWidely used for industrial control of AC 50Hz and DC circuits.\r\n\r\nIt can control magnetic starters, contactors, relays, and other electrical circuits.\r\n\r\n\r\n\r\nSpecifications:\r\nModel: XD2-PA22CR\r\nType: 2-position momentary\r\nContact: 2NO\r\nRated voltage: 0~380V AC (50Hz); 0~220V DC\r\nMounting hole diameter: 22mm\r\nElectrical life: >500,000 times\r\nMechanical life: >500,000 times\r\nSize: 12.5*4cm/4.9*1.6in\r\nOperating temperature: -25~+55 (no ice)\r\nOperating humidity: 45~85%RH (no condensation)\r\nContact resistance: 50mΩ\r\nInsulation resistance: 100 MΩ\r\nMax. Withstand voltage: 3000V, AC 50Hz\r\nVibration capability: 50Hz, amplitude is about 1mm\r\nShock resistance: >10m/s2 (about 10G)\r\nIP rating: IP55\r\nWeight: 124g (approx.)\r\n\r\n\r\nPackage includes:\r\n1 x Switch
