Danfoss SSM grenrörssats 11+11 m/slutstycke

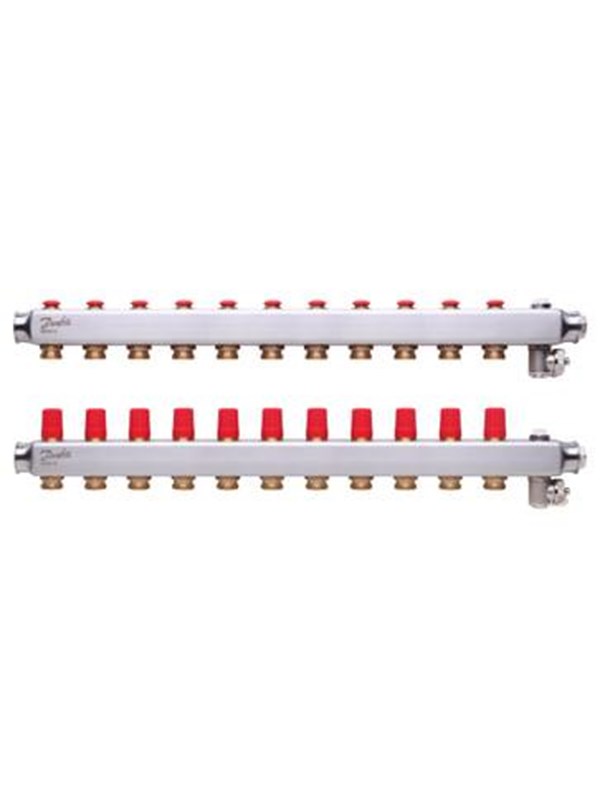

Danfoss SSM underfloor heating manifold in stainless steel with output for 11 heating circuits. SSM floor heating manifolds are equipped with integrated vents and filling/draining function on both flow and return manifold. Manifold SSM is used for heat control in underfloor heating systems. Each hose in the underfloor heating system is connected to the manifold, which makes it possible to regulate the heat supply to all rooms in the building independently. The manifold consists of a flow manifold and a return manifold. The flow manifold allows you to close each circuit independently. The manifold is without a built-in flowmeter. The return manifold is equipped with Danfoss' preset valves, which ensures optimal water balance in the system. The manifold valves can be controlled electronically using thermo actuators. The manifold is available in modules from 2-12 heating circuits. In addition, there are fittings that allow the manifolds to be combined in series - up to a maximum of 16 heating circuits. Ball valves are offered as an option for shutdown between the manifold and the rest of the system.
