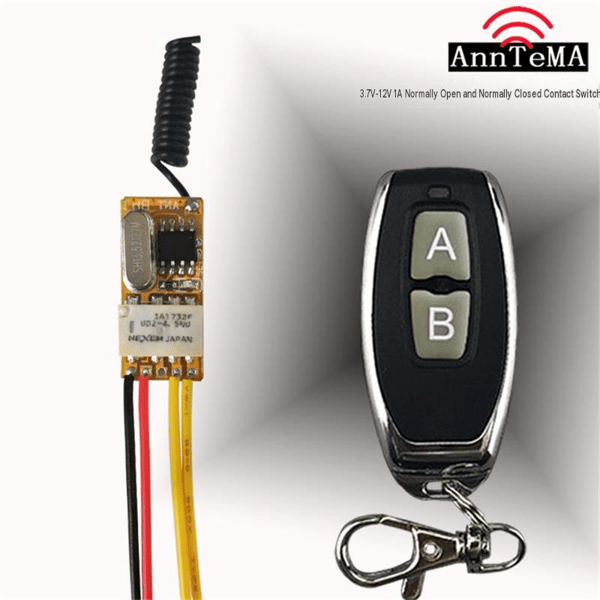

[KK]Wireless RF Remote Control 433Hz 4.2-12V S Relay Module No NC MI

Working voltage: DC3.5V-DC12V (Wide working voltage range DC3.7V 4.5V 5V 6V 9V 12V are all ok) (it can work with DC power / Rechargeable lithium battery / Rechargeable)\nMaximum load: 1A (better with load less than 700ma)\nQuiescent current: 5ma\nRelay working current: 20-30ma\nSize: 25 x 11 x 8mm\nWorking frequency: 433MHZ\nWorking mode: jogging, self-locking, solder joint switching\nWorking mode: Momentary toggle optional by leaving message\nCoding type: Learning point to add transmitter\nNormally open port (NO) Common port () Normally closed port (NC)\nInput DC3.5V-DC12V Output 0V Switching value use Relay NO NC\nMomentary----- Press and hold---ON, Release----OFF\nToggle-------Press once ----ON. Press again ----OFF\nLatched--------Press A ----ON, Press B-----OFF\nMaterial: PCB+plastic\nColor: as shown\nPackage Contents:\n1 x Receiver\n1 x Remote Control (2 CR2016 button batteries not included)\nOnly the above package content, other products are not included.\nNote: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
