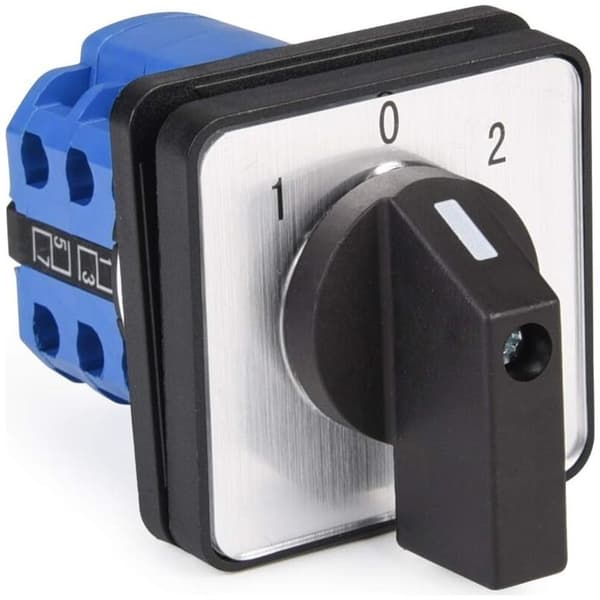

Trimec - Universal Rotary Switch 20 A 3 Positions 8 Terminals 690 V - Flame Retardant Material - For Professional Electrical Installation

General Universal 3-position rotary switch (20 A, 8 terminals) suitable for electrical installation in various devices. It enables starting and reversing of asynchronous motors, as well as conversion of the control circuit. Technical Specifications • Product name: 3-position load selector • Operating voltage (Ui): 690 V • Rated current (Ith): 20 A • Number of terminals: 8 • Model: LW28-20/2, 3 positions (1-0-2), 2 phases • Panel size: 48 x 48 mm • Installation size: 36 x 36 mm • Material: Flame retardant polycarbonate, high-quality copper parts with silver alloy tips Compatibility and Accessories • Suitable for mounting plates with thicknesses between 1 mm and 5 mm Applications • Ideal for power switches, speed switches, and as main control or signal transfer switches • Used in electric welding machines and other devices Other Information • Package contents: 1 switch, 4 mounting screws
